This e-book shows how to create feature-rich multi-user Excel applications with no SQL or VBA use.

You may repeat the steps and create a lot of applications for your team yourself.

Download PDF Version Download Examples


Microsoft Excel is an amazing product.

It brings freedom to business users as allows getting data from anywhere and consume the data in any way.

If you like Microsoft Excel, you definitely have to try the SaveToDB add-in for Microsoft Excel.

The add-in allows database and VBA professionals to create complex corporate applications using Excel.

Moreover, the add-in allows business users to create Excel applications with no SQL or VBA use.


In this book, we will create an application and learn 11 steps that you may repeat for your applications:

  1. Publish tables to a database
  2. Configure query parameters
  3. Configure formats and table views
  4. Configure validation lists

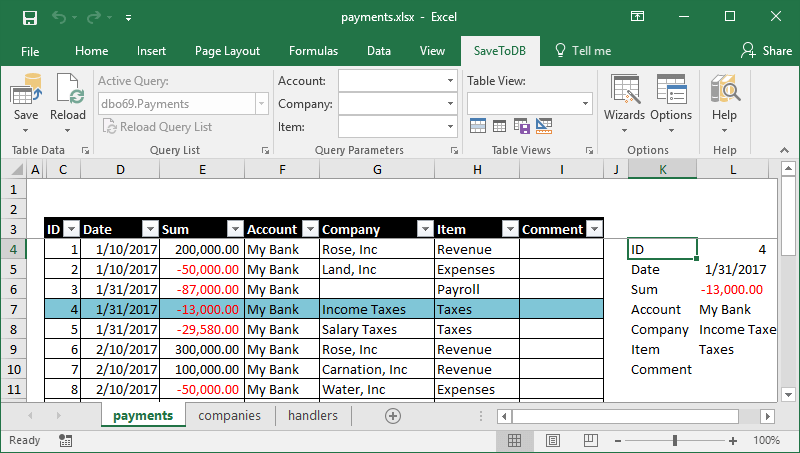

  5. Add cursors and form fields
  6. Configure detail tables, windows, and task panes
  7. Configure context and action menus
  8. Add image URLs
  9. Configure LastModified and UserName fields
  10. Integrate with other applications
  11. Manage permissions


You have to download and install the SaveToDB add-in at www.savetodb.com, version 7.2 or higher.

All features described in this book are available in the free SaveToDB Express edition.


You may download the initial workbook, the final application, and required SQL codes at



This book contains an example database for Microsoft SQL Server.

You may also use Oracle Database, IBM DB2, MySQL, and other supported databases. The steps remain the same.


Best regards,

Sergey Vaselenko

March 20, 2017

Chapter 1. Initial Workbook

We will create an Excel application based on the following simple workbook of payments:

Suppose, we have a team that uses this workbook: Alex as a leader, Nick, and Lora.

In common case, such workbooks are located in shared folders or corporate portals.

Simultaneous editing of such workbooks is not easy.

Also, every user periodically wants to add personal worksheets or formulas and do not share them with others.

We will solve all these issues placing data tables to a database.

Moreover, you may do this yourself. SQL or VBA knowledge is not required.

Chapter 2. Configuring Database

Our application requires a database. Also, you must have enough permissions to create and edit tables.

You may say to your IT guys the following:

  1. I need a schema in a database.
  2. My team will create tables in this schema.
  3. I want to manage permissions on our tables.
  4. My team members: Nick, Lora, and I am, Alex.
  5. Create two tables, EventHandlers and TableFormats, using the attached SQL codes.

It is an easy task for your IT staff. Just send this chapter to him or her.

Further, we will use the dbo69 schema in the Test2 database and user names like Alex, Nick, and Lora.

You may skip the comments below and continue to the next chapter.

SQL Scripts

The following script creates logins and users in the master database:

USE master



The following script creates users in the Test2 database:

USE Test2


This is the important code that gives permissions to create tables in a database:


The following code creates and configures a role for our team, and grants permissions to Alex:





The following code creates a schema and sets the schema permissions:



EventHandlers and TableFormats

The following two tables stores the SaveToDB add-in configuration.

You must have these tables in a database to implement certain of features.

Please replace dbo69 in the following code (9 places) to your actual schema:

CREATE TABLE dbo69.EventHandlers (
      ID int IDENTITY(1,1) NOT NULL
    , TABLE_SCHEMA nvarchar(128) NOT NULL
    , TABLE_NAME nvarchar(128) NOT NULL
    , COLUMN_NAME nvarchar(128) NULL
    , EVENT_NAME varchar(50) NOT NULL
    , HANDLER_SCHEMA nvarchar(128) NULL
    , HANDLER_NAME nvarchar(128) NULL
    , HANDLER_TYPE nvarchar(128) NULL
    , HANDLER_CODE nvarchar(MAX) NULL
    , TARGET_WORKSHEET nvarchar(128) NULL
    , CONSTRAINT PK_EventHandlers_dbo69 PRIMARY KEY (ID)

CREATE TABLE dbo69.TableFormats (
      ID int IDENTITY(1,1) NOT NULL
    , TABLE_SCHEMA nvarchar(128) NOT NULL
    , TABLE_NAME nvarchar(128) NOT NULL
    , CONSTRAINT PK_TableFormat_dbo69 PRIMARY KEY (ID)
    , CONSTRAINT IX_TableFormats_Schema_Name_dbo69 UNIQUE (TABLE_NAME, TABLE_SCHEMA)
 INSERT INTO dbo69.EventHandlers (TABLE_SCHEMA, TABLE_NAME, COLUMN_NAME, EVENT_NAME, HANDLER_SCHEMA, HANDLER_NAME, HANDLER_TYPE, HANDLER_CODE) VALUES ('dbo69', 'EventHandlers', 'EVENT_NAME', 'ValidationList', NULL, NULL, 'VALUES', 'Actions,Change,ContextMenu,DoubleClick,SelectionChange,ConvertFormulas,DoNotConvertFormulas,DoNotSelect,DoNotSave,DoNotChange,ProtectRows,Formula,FormulaValue,ValidationList,SelectionList');


Chapter 3. Publish Wizard

In this chapter, we will publish our table to a database.

This action is required once for every table that you want to have in a database.

Excel Tables

The tables must be an "Excel tables", not regular ranges.

To convert a range table to an Excel table, select a cell in a table, and click Insert, Table.

Excel suggests an entire region. Correct it if needed.
Check My table has headers and click OK.


Then locate the table left top cell at cell C3 (Chapter 6 contains details). Now we have the table like this:

Starting Publish Wizard

Now select a cell in the table and run Publish Wizard.

You see wizard step descriptions:

Read and click Next.

Selecting Provider

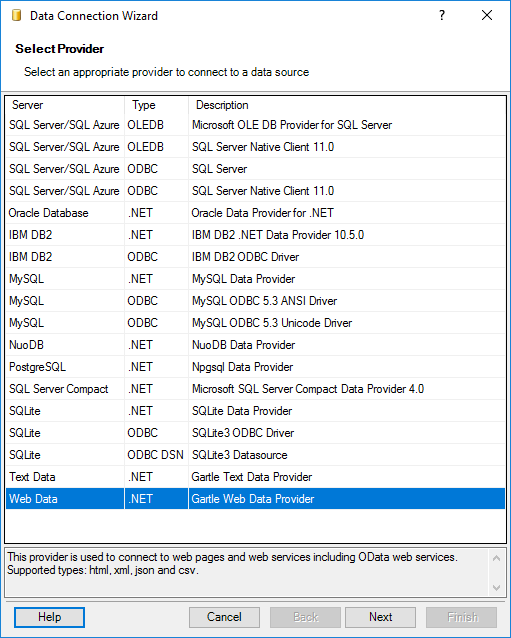

In the next step, we select a database provider:

You may publish tables to any supported database like SQL Server, Oracle, MySQL, and others.

Select the first provider for SQL Server.

Connecting to Database

In the next step, you have to specify a server, a database, and logon credentials received from your IT guy.

Usually, at the first connection, you have to change the password:

Fill the new password twice and click OK.

Then click Next in the connection form.

Table Design

The add-in suggests a database table structure based on actual data in the published table.

In this example, we need to change the int type of the Sum column to float, and the int type of the Comment column to nvarchar(255) as shown on the next page.

The add-in suggests the correct types for target databases and actual column types in the drop-down list.

Also, tables must have the primary key column or columns that uniquely identify table rows.

In most cases, you may add a column like ID of the integer type.

The add-in does this automatically if it does not find a column with unique values.

You may define primary key columns checking the PK column.

Also, you may add, delete, rename, and reorder columns.

It is a good idea to have column names without spaces. You may use capitalized word parts like CompanyName.

Table Schema and Name

In this step, you specify a table schema and name:

Executing Script

The add-in generates an SQL script to create a table and to insert the existing data:

You may edit the script if you need.

For example, you may delete INSERT rows if you need to create an empty table.

Also, you may create multiple tables changing table names only.

You may change column data types if you do not find it in the drop-down list in the previous step.

Click Execute when you are ready.

Finish Steps

The add-in shows execution results on the next screen.

You may repeat steps if you need. Just click Back.

You may click Cancel if you do not need to insert a new connected table into the workbook.

Now click Finish.

The add-in inserts a connected table to a new worksheet and shows a message about your success:

Editable Table

We see the following screen as a Publish Wizard result:

First of all, you see that the Save button is enabled.

You may change data, add and delete rows. When you are ready to save changes to a database, just click Save.

If you do not want to save changes, just click the Reload button.

Note that you may use the Undo command (Ctrl-Z). The add-in does not disable it, unlike macros.

You may save and close the workbook, and then open it and save the data changes to a database later.

This is useful when you work outside of the corporate network.


You see that the add-in inserts a new table on a new worksheet named as Sheet6.

You should know that the add-in creates "very hidden" worksheets that contain configuration data.

You may unhide the add-in sheets using SaveToDB Options, Developer Options, Show SaveToDB Data Sheets.


You may see the connected table name in the Active Query field.


In our example, let's do the following: rename the Sheet6 to payments, remove the source Sheet1, format the table, and save the workbook as a new workbook as payments.xlsx.

As a result, we have a new workbook with a table connected to a database.

Chapter 4. Data Connection Wizard

In this chapter, we connect to the created Payments table from a new workbook under Nick's credentials.

Connecting to Database

Let's create a new workbook and save it as payments-nick.xlsx.

Then let's run the Data Connect Wizard.



The wizard contains the same connection steps as described above.

Selecting Database Object

Let's connect to the dbo69.Payments table. You may use search. Uncheck Enable Query List on the ribbon.

Selecting Table Fields

In this step, you may check the fields to select and the fields to use as filters. We will learn this in the next chapter.

Now you may click OK and insert the table at cell B3.

We have an editable table in Nick's workbook. Alex and Nick can work now in their personal workbooks.

The table has an ugly format, unlike Alex's table. We will solve this in Chapter 7.

Chapter 5. Query Parameters

Let's return to Alex's workbook and run Reload, Configure Query Parameters:

Check the check boxes in the W (WHERE) column for the Account, Company, and Item columns:


The SaveToDB add-in places the selected columns to the ribbon. So, you may filter data:

Let's choose the Revenue item:

This feature allows working without auto-filters and loading fewer data.

Chapter 6. Table Views

Users often apply different filters to the loaded data, hide and unhide columns, sort in various ways, etc.

The SaveToDB add-in may help to save such user views and even share them with colleagues.

Let's remove all WHERE filters and click the Save Table View button in the Table Views group:

Type All Payments and click Save.


We see the name of the current view, All Payments, in the Table View field.

Type >0 in cell E2.

The add-in applies the filter to the Sum column.

This is a reason why it is better to insert tables at cell B3.

Users may use row 2 (as a row over the table) as auto-filters. Also, they may place formulas in row 1.

Let's continue and save the view as Incomes (click the Save Table View button again):


Type <0 in cell E2.

The add-in applies the new filter to the Sum column.

Save the view as Expenses.

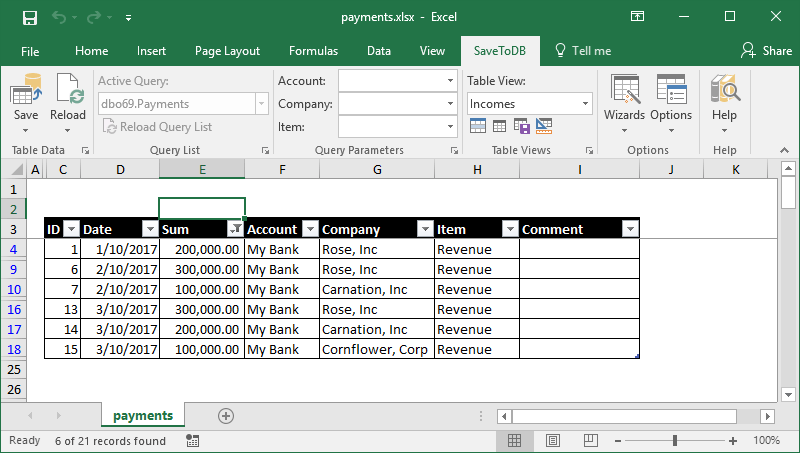

Remove the filter in cell E2 and apply the Incomes view in the Table View list:

As we may expect, the add-in applies the saved filter to the Sum column.


You may use the auto-filter row and table views for any Excel table.

Moreover, you may save views for pivot tables also.

I am sure you will like these features.

Chapter 7. Table Format Wizard

We have formatted the table in the previous steps in the payments.xlsx workbook.

If a user connects to a database from a new workbook like Nick in Chapter 4, he has Excel defaults.

We can fix this publishing table formats and table views to a database using Table Format Wizard.

Saving Formats

Start Table Format Wizard:

In the wizard, select a table and click the Save in Database button:

The wizard saves the table format and changes its state:

Now, users will get the same formats, views, and formulas of the tables when they connect to a database.

Use the wizard to republish new views later.

Restoring Formats

Users may use the Restore from Database button to reload the updated formats and views.

For example, let's switch to Nick's workbook and run Table Format Wizard.

Nick may see that dbo69.Payments table has a format in a database:

Select the desired table and click the Restore from Database button. Then close the wizard.


Now, the table in Nick's workbook has the same format and table views as in Alex's workbook:



Once again, you may use this wizard to save and restore formats, formulas, and table views.

This feature allows sharing best features when every team member uses personal workbooks.


The Table Format Wizard saves formats in the TableFormats table in a database.

We have created this table using the SQL code provided in the Configuring Database chapter.

Chapter 8. Validation Lists

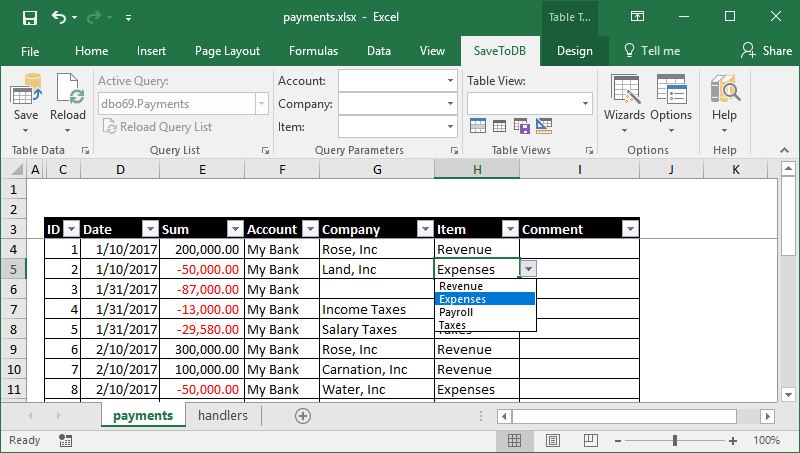

In this chapter, we will create validation lists for Account, Company, and Item columns.

Moreover, we will configure this feature in a database, and the add-in will apply validation rules automatically.


Configuring validation lists requires the EventHandlers table in a database.

We have created this table using the SQL code provided in the Configuring Database chapter.

Let's add a worksheet, named as handlers, run Data Connection Wizard and connect to the EventHandlers table:

Uncheck Enable Query List on the ribbon. Click Finish, and insert the table at cell B3.


We have to see the following table:

The add-in highlights fields that require values. Let's format the worksheet and table to make them beautiful.

Static Validation Lists

Add the following configuration and click the Save button:

This table has two parts, "tables" and "handlers":

In the table part, we have specified the configured table, its columns and the event name as ValidationList.

In the handler part, we have defined how to handle events. In this case, we have configured the VALUES type and specified static values in the HANDLER_CODE field.

Further, I will use the short format like this, without the SCHEMA fields that contain the dbo69 value:

Now, the handlers worksheet should look like this:


Let's switch to the payments worksheet and click Reload, Reload Data and Configuration:


The add-in creates validation lists using the specified values:

List Editor

The add-in activates List Editor that allows selecting values from lists in a comfortable way, including search.


You may turn on/off the List Editor using the Options, Show List Editor Task Pane option.

Dynamic Validation Lists

Let's create a validation list for the Company column. We must have the possibility to change values easily.

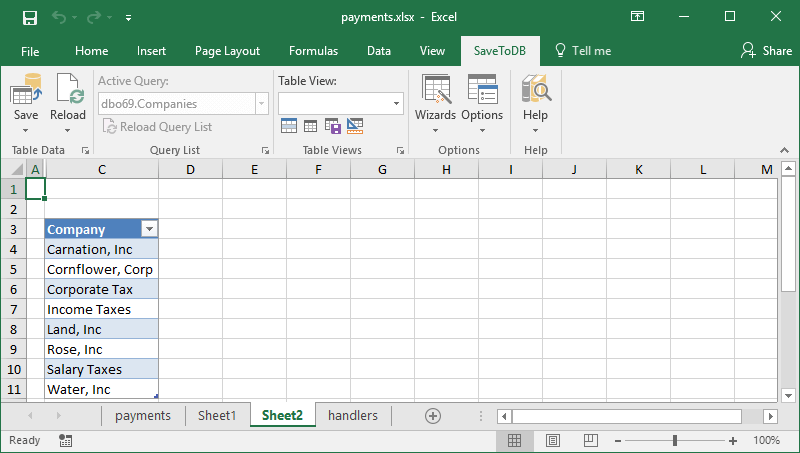

Create an Excel table with companies at a new worksheet starting cell C3:

Run Publish Wizard as described above. At the design tab, we have the following structure:

The table contains one column that is used as a primary key column. It's ok. Click Next and execute next steps.

Publish table as dbo69.Companies table.

As a Publish Wizard result, we have the editable dbo69.Companies table of companies at a new sheet:

Let's remove the initial Sheet1 worksheet, rename the Sheet2 to companies, and format the table:

Switch to the handlers sheet, select a cell in row 5, and click the Copy and Insert Rows button.

This action will create a copy of the selected line. So, you may easily change only different values.


Add a validation list configuration for the Company field like this:

Complete table:

As a result, the add-in will create a validation list for the Company column using the Company field of the dbo69.Companies table.

Switch to the payments worksheet and click Reload, Reload Data and Configuration to refresh the list:



You have to know that the add-in places connected tables of validation list source values like dbo69.Companies to a hidden worksheet and configures validation lists using a range formulas.


Setting validation lists this way has great benefits.

You configure it in the EventHandlers table, and the add-in creates validation lists automatically.

Just use Reload, Reload Data and Configuration to reload validation list values.

Chapter 9. Cursors

Let's select the Payments worksheet and click Wizards, Form Wizard, Add Cursor:

The add-in highlights the active table row:

Chapter 10. Form Fields

Let's run the same wizard, click Add Form Fields and select cell K4:

The add-in inserts form fields and updates them when you select another row.

Moreover, you may use such fields to edit table row values.

Chapter 11. Master-Details

Let's select the companies sheet and add form fields at cell E4.

Then let's move cell F4, the Company field, to C1 and remove column E. Now cell C1 contains the active company.


Now, select cell E3 (outside of the active table) and connect to the dbo69.Payments table.

In the connection wizard, check at least the field used as a filter (Company) in the WHERE column:

and insert the table at cell E3:

We see that the dbo69.Payments table has ribbon parameters including Company.

Also, we see the selected company in cell C1 that may be used as a parameter. Let's link them.


Select cell C1 and click the Define Name button in the Defined Names group on the Formulas tab:

Specify the name as the parameter name, Company, and select the sheet name, companies, in the Scope field:

Click OK. Then select a row in the Company table, and voilà!


When you select the detail table, you may see its parameters at the ribbon:

Both tables are editable.


Here is a list of events that implement master-details:

  1. A user selects another row in a master table.
  2. The add-in updates form fields (cell C1 with Company).
  3. The add-in changes parameters of the detail tables using named cell values (cell C1 as Company).
  4. The add-in reloads the details with new parameter values.


You may build more complex forms using the same technique.

For example, the Northwind example contains the following tables with master-detail relations:

  1. Customer first char index (A-Z)
  2. Customers
  3. Customer orders
  4. Orders

Chapter 12. Detail Windows and Task Panes

We may use another technique to show details in windows and task panes using the SelectionChange handlers.

Detail Windows

Let's select the handlers worksheet and add the SelectionChange handler:

Complete table:

Switch to the payments worksheet and click Reload, Reload Data and Configuration to reload the configuration.

Then select another row in the Payments table. You will see the window with row details:

You may select another row. The window will stay on top and show related information.


You may transpose row to columns in the output window. Just add the _Transpose word in TARGET_WORSHEET:


Switch to the payments worksheet and click Reload, Reload Data and Configuration. A new window looks like

Task Panes

Use of detail windows is a good solution when you need windows that are always visible.

If you need context windows, you may use task panes. Just add the _TaskPane word in TARGET_WORSHEET:

A new task pane window will look like


You may customize column formats using the context menu.

Also, you may dock task panes and turn them on/off using the SaveToDB, Options, Show Task Panes option.

Chapter 13. Context Menus

Detail windows and task panes discussed above are shown in the SelectionChange event.

We may add such queries and much more to the context menu.

Let's add the following configuration to the EventHandlers table (two lines at the bottom):

Contrary to the SelectionChange handler, we have specified columns. So, context menus are shown for columns.

Also, we have directly specified select columns in the HANDLER_CODE. The plus sign defines the sort order.

@Company and @Item fields are used in the WHERE clause to filter output data using current row values.

Let's select the payments sheet, click Reload, Reload Data and Configuration, and right click on a company cell:


When we click on the dbo69.Payments item, the add-in shows the window like this:

You see rows for Rose, Inc. You may click on the status line to check the generated SQL:

Let's right click on any Revenue item cell and click on the dbo69.Payments item. We will see item payments.



As we learned above, the SelectionChange and ContextMenu handlers are nearly the same.

They get parameters from the columns of the active row. They differ by the EVENT_NAME configuration.

However, the ContextMenu handlers support additional configuration parameters like MENU_ORDER and EDIT_PARAMETERS and allow using much more handler types in the HANDLER_TYPE field.

You may configure executing stored procedures, SQL codes, macros, CMD commands, opening URLs.

Use the MenuSeparator type to separate menu items.


Chapter 14. Actions Menus

The action menus are located at the ribbon and have nearly the same features as context menus.

However, users may execute actions when the active cell is outside of the table. So, they may have no context.

Let's add an URL to the Actions menu for the EventHandlers table. Add the line shown at the bottom:

Complete table:

Reload data and configuration. You will see the Actions menu with the Instruction link.


The Actions menu is a good place for documentation links and common tasks related to a table, not to a row.

Chapter 15. Image URLs

You may add URLs and image URLs to your tables. This does not require any configuration.

The add-in automatically loads and shows images in task panes. You may dock task panes like this:

Also, the add-in adds the Open URL context menu if a row contains URLs.

Chapter 16. LastModified and UserName

In this chapter, we will add columns that show times and user names of the latest updates.

This helps team members to understand who and when changed data.

You may use the following solution in a friendly environment. Otherwise, you have to use database triggers.

Creating New Columns

Let's select the companies worksheet, the Companies table, and launch Publish Wizard.

Follow the steps. At the design tab, add the following columns:

You may change column names and data types in your solutions.


Specify the same table name at the following step and execute the SQL script to recreate the table.

Do not click Finish to skip the creating a new table in the workbook. Click Cancel at this step.

Let's reload data and configuration on the existing worksheet. You will see new fields in the Companies table:

Event Handlers

Let's add the following handlers for the Companies table in the EventHandlers table:

Complete table:

The FormulaValue handlers update cell values on row changes using the specified formulas.

=NOW() is an Excel formula. You may use this technique for other formulas too.

=UserName() is a SaveToDB add-in formula. You may use =DomainUserName() also.

The DoNotChange handlers prevent changes in the LastModified and UserName columns.


Let's switch to the companies worksheet and change a couple of cells.

As you may see, the add-in updates the values in the LastModified and UserName columns.


This technique is very simple. You may add this feature to your tables quickly.

However, note that such columns may be updated with any values directly in a database using SQL.

Chapter 17. Integration with Other Apps

You may load data from external data sources and save the data into your tables.

You may load data from databases, web pages, and text files using the add-in, or from other sources using Excel or other tools like PowerQuery.

External Data Sources

Let's create a worksheet like integration and run Data Connection Wizard.

You may connect to any supported data source including text files and web data.

Let's select the Web Data provider.

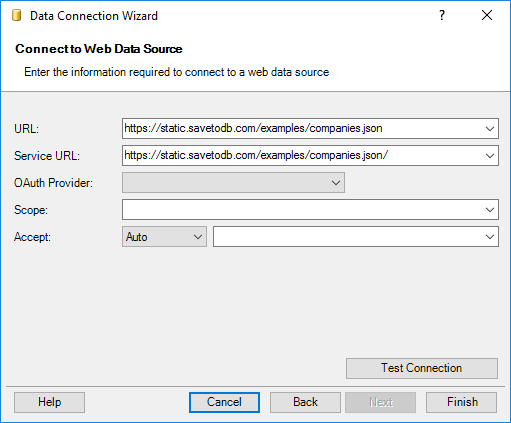

At the following step, let's paste the test URL to load data from a JSON data source:

You may test the following URLs:

  • https://static.savetodb.com/examples/companies.json
  • https://static.savetodb.com/examples/companies.xml
  • https://static.savetodb.com/examples/companies.html
  • https://static.savetodb.com/examples/companies.csv

The SaveToDB add-in automatically parses the pages and retrieves the meaningful data.

You may also customize the parsers. Refer to the documentation.

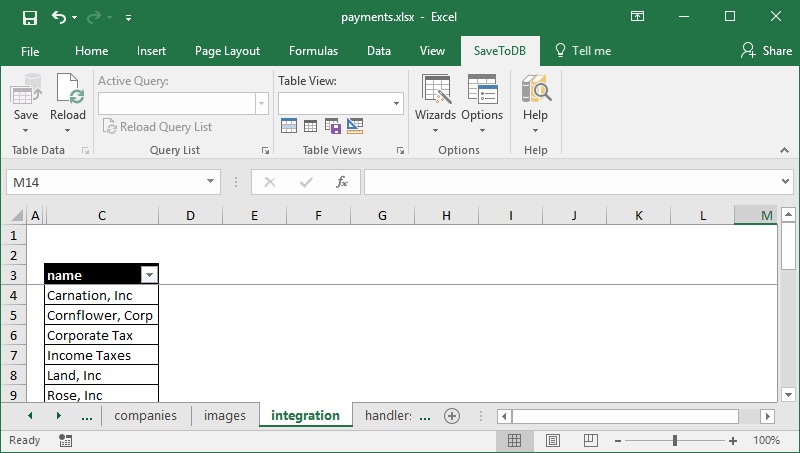

Let's insert the new connected table at cell B3. You may refresh the data anytime.

Data Merge Wizard

The external data source contains the name column. Our dbo69.Companies table contains the Company column.

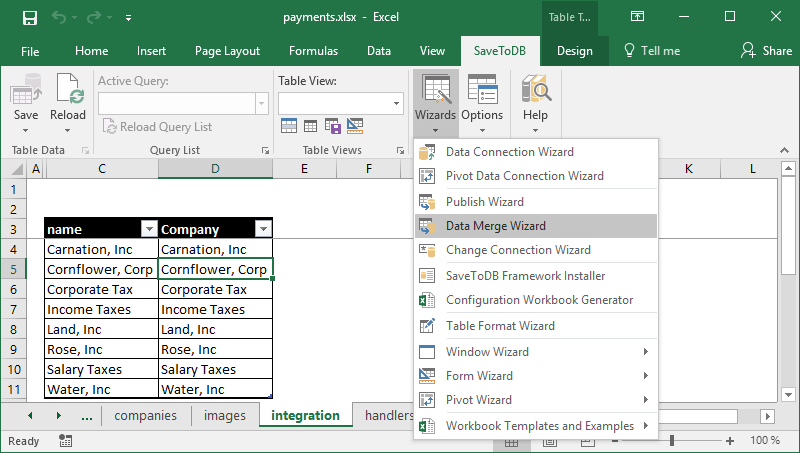

Let's add the target Company column using the formula like =[@name] and run Data Merge Wizard.

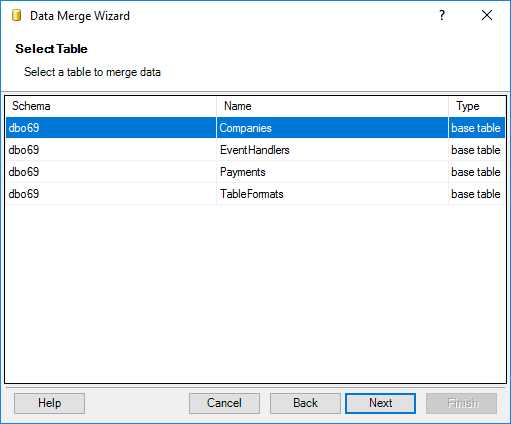

Follow wizard steps and select the target dbo69.Companies table at the following step:

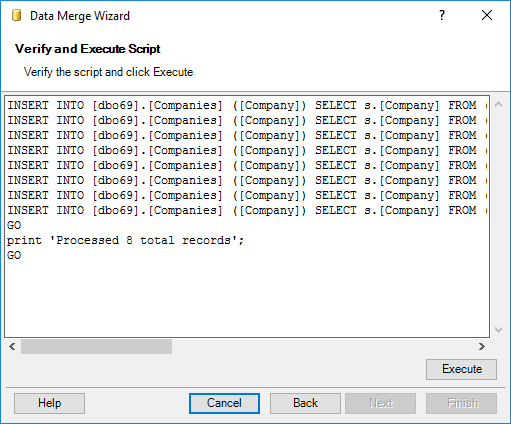

You may see the generated SQL code used to update the underlying table in a merge mode. Click Execute.

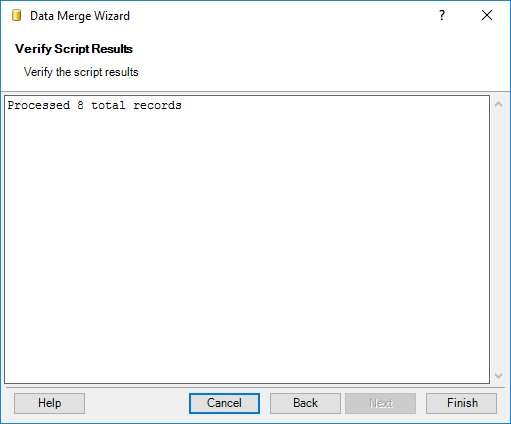

At this step, you see the execution result. The add-in has updated data. Click Finish to exit the wizard.

Save by Merge

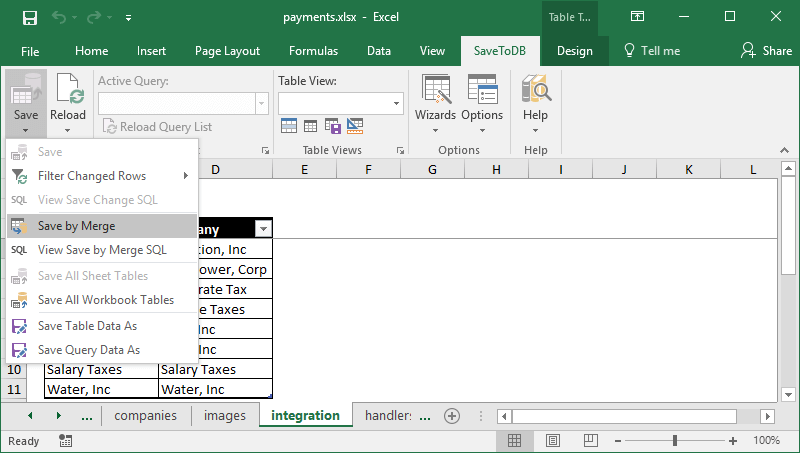

The add-in saves the merge configuration. So, later you may use the Save by Merge item to have the same results.

Chapter 18. Permission Management

Managing permissions is an important part in multi-user environment.

Your IT staff manages permissions at the server and database levels. This is their tasks.

As a business user, you may manage permissions related to your applications.

And, the best news, you may do this for SQL Server in Excel using the SaveToDB add-in application.

This application is a good example, also, of what you and your developers may do with the SaveToDB add-in.

SQL Server Management Application

Create the permissions worksheet and run Data Connection Wizard. Connect to your database.

At the following step, select SQL Server Management in the Select Query List field,

leave Enable Query List on the ribbon checked, and select Logins.

Click Finish and insert a new table at cell B3.



This table allows managing logins, passwords, and usernames. Just change the data and click Save.

Usually, business users see the personal login only and cannot change any value.

The Actions menu contains useful actions and helpful links for database administrators.

Query List

The ribbon Query List allows changing query objects using a single worksheet for multiple tasks:


The Users table shows users that you may manage. Usually, business users have no permissions to change.


This table allows checking and changing user membership in roles. Just set 1 or clear the value in the desired cell.

Principal Permissions

This table allows changing principal permissions. Set the HasAny value to 1 to see the actual permissions only.

Database Permissions

Only database administrators may change permissions. Business users must have CREATE TABLE permissions.

Object Permissions

This is a working table for business users. We learn it below. Set HasAny to 1 to see the actual permissions only.

The table contains actual permissions for our application:

Suffix legend: s - by parent schema, r - by parent role, sr - by parent schema and role, + - WITH GRANT OPTION

We see the following data under Alex's credentials:

  • The database contains the Alex_Team role and users: Alex, Lora, and Nick.
  • The database contains the dbo69 schema and tables: Companies, EventHandlers, Payments, TableFormats.
  • Alex has the CONTROL permission WITH GRANT OPTION on the dbo69 schema and schema tables.
  • Alex_Team and its members have read and write permissions on the dbo69 schema and schema tables.

You may change permissions using first letters: G - GRANT, D - DENY, R - REVOKE

In the following example, Alex denies the INSERT permission for the EventHandlers table directly, and the UPDATE and DELETE permission indirectly, using the role level.

In any case, if you have this task, you will find this app user-friendly and learn required actions quickly.

Do not afraid and go ahead.


We have created an Excel application with cool professional features and learned steps that you may repeat:

  1. Publish tables to a database
  2. Configure query parameters
  3. Configure formats and table views
  4. Configure validation lists
  5. Add cursors and form fields
  6. Configure detail tables, windows, and task panes
  7. Configure context and action menus
  8. Add image URLs
  9. Configure LastModified and UserName fields
  10. 10. Integrate with other applications
  11. 11. Manage permissions

You may do these steps with no SQL and VBA. We have configured the application using wizards and handlers:

Of course, database and VBA developers may do much more. You may recommend them my e-books:


Hope you will like the SaveToDB add-in as I am and will use the SaveToDB tab every day.

You may download the SaveToDB add-in at www.savetodb.com and use the SaveToDB Express edition for free.


I would appreciate your feedback. Feel free to contact me at .

Cool applications for you and your team!

Sergey Vaselenko

This website is using cookies. By continuing to browse, you give us your consent to our use of cookies as explained in our Cookie Policy.
